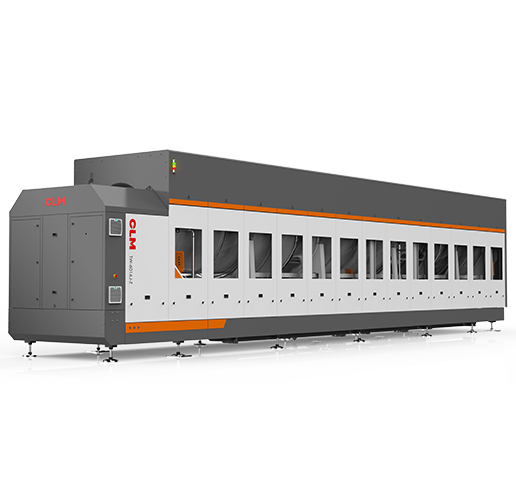

TW-J Hotel Series 60Kg tunnel washers

Product overview

High cleanliness: meet the washing quality of five-star hotel.Low damage rate: The pressing machine is a heavy frame structure, with high strength and lower damage rate.High efficiency: 1.8 tons/hour washing volume (60 kgx16 compartments).

Application industry

Hotel Laundry
Hospital Laundry
Product Video

Technical Characteristics

  • Inner Drum Material

    CLM tunnel washers inner drum is made of 4mm high quality 304 stainless steel, and the drums connecting flange is made of 25mm stainless steel

  • Precision Machining

    After the tunnel washers inner drums are welded together, after precisely processed by lathes, the entire drums beating is controlled within 30 silk

  • Sealing property

    The CLM tunnel washers have good sealing performance, effectively guarantees that no water leakage, low running noise,and stable

  • Trasnfer Type

    Bottom Transfer,not easy to block and damage the linen

  • H-type steel heavy structure design

    The bottom frame of the CLM tunnel washers is designed with a 200mm thickness H-type heavy structure steel.Not easy to deform during the transportation and the strength is good

  • Three points support

    The CLM tunnel washers adopts a three-point support transmission structure design, which effectively avoids the possibility of falling deformation in the middle position during long-term load operation.Because the 16 compartments tunnel washers total length is nearly 14 meters. If use two points suppor, it will have the deformation on the middle position of whole structure in the transportation and long term load operation

  • Hot dip galvanized treatment

    The entire bottom frame is treated with hot-dip galvanized treatment, and the anticorrosive effect is good to ensure that it will never rust

  • Special Design

    CLM tunnel washers main motor is set behind the electrical box, and the electrical box can be rotated and opened as a whole. Special design, which is convenient for main motor CLM laundry main cage main motor is set behind the electrical box, and the electrical box can be rotated and opened as a whole. Unique design, which is convenient for main motor maintenance and further maintenance

  • Circle water filter device

    The CLM tunnel washers filtering device is standard configuration. Effectively filter the lint of circulating water, ensure the clean use of circulating water, and ensure the quality of washing.

  • Foam and lint overflow device

    The floating objects during the rinsing process are discharged through the overflow port, so that the rinsing water is more clean and the linen cleanliness is higher

  • Counter flow rinsing out of the drum

    Counter flow  rinsing to ensure that the first drum always has the cleanest water. The bottom pipeline counter flow design to avoid the dirty water counter flow from the hole of transfer partition to make the linen not clean enough during rinsing process

High Cleanliness

CLM洗衣籠密封性能性好，有效保證不漏水、運行噪音低

Low Breakage Rate

裝料口設置在地面70CM高的距離，實現輕松裝料，人性化設計。

Energy Efficiency

所有電器、氣動元件均采用德國、日本品牌。

Good StabilityGood Stability

洗衣籠內筒采用4mm厚度不銹鋼，比歐洲其他品牌材料更厚更堅固。

Technical Parameter

Product manual
